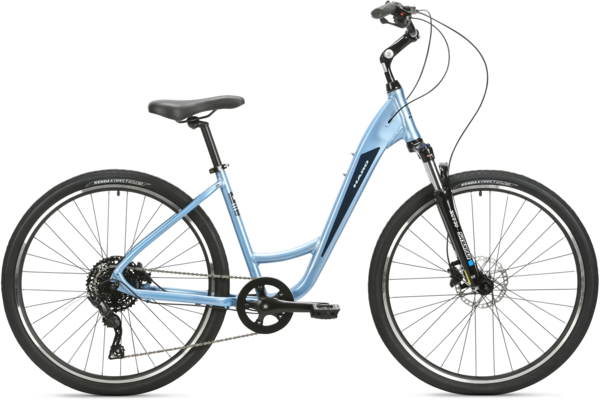

Haro Flow 3 Step Thru
$789.99
Details
Everything about the Flow 3 bike speaks to maximum comfort: the softest suspension fork (that you can lock out too if you want to ride quickly on smooth surfaces), a wide range of easy gears, excellent very predictable and strong brakes, and the best seat and seatpost of the lineup. It really is the king of comfort, and with such an easy riding position, it makes going on a bike ride an absolutely enjoyable experience, as it should be.
| SIZE | S / 15 ST | M / 17 ST |
|---|---|---|
| A. Top Tube (Effective) | 575mm (22.6") | 590mm (23.2") |
| B. Seat Tube (C-T) | 381mm (15") | 432mm (17") |
| C. Standover Height | 435mm (17.1") | 444mm (17.5") |
| D. Head Tube Length | 155mm (6.1") | 155mm (6.1") |
| E. Head Angle | 68° | 68° |
| F. Seat Angle | 71° | 71° |
| G. Wheelbase | 1078mm (42.4") | 1097mm (43.2") |
| H. Chainstay | 440mm (17.3") | 450mm (17.7") |
| I. BB Drop | 40mm (1.6") | 55mm (2.2") |
| J. Stem Length | ||
| K. Bar Width | 635mm | 635mm |
| L. Crank Length | 170mm | 170mm |
| M. Wheel Size | 26 | 27.5 |
Specs
| Frame | Flow | Heat-treated 6061 aluminum | Newly Refined Design | Tig-welded construction | Easygoing geometry (pedal forward positioning) | Size-Specific Wheel Design | 68mm threaded BSA bottom bracket shell | 135mm quick-release spacing |
|---|---|
| Fork | SR Suntour | SF20 NEX HLO-DS | 63mm travel | Lightweight alloy crown and monocoque lowers | Weather-sealed stanchion protection | Plush coil spring with adjustable preload | Hydraulic Lockout | Post-mount disc brake | 100mm quick-release spacing |
| Wheels | Alloy | Width (internal): 19mm Double-wall | 32h |
| Hubs |
Front: Alloy | 100mm quick release | I.S. 6-bolt disc | 32h Rear: Alloy | 135mm quick release | I.S. 6-bolt disc | HG freehub | 32h |
| Tires | Kenda Kwick Journey S: 26 x 1.75" M: 27.5 x 1.75" |
| Bottom Bracket | 68mm threaded BSA shell | JIS square taper | Sealed cartridge |
| Crankset | 3-piece | Forged alloy | Steel 38T chainring with dual-guide design | 170mm length |
| Shifters | Microshift Xpress Trigger | RS 9s | No Indicater | SL-M819-R | Shimano Compatible |
| Rear Derailleur | Microshift Advent | 9s | Medium Cage | W Clutch | RD-6195M | Shimano Compatible |
| Cassette/Freewheel | Microshift | 9s | 11-42T |
| Chain | KMC X9 | 9-speed |
| Brakes | TEKTRO Hydraliuc | Dual Piston | Open System | Post Mount | 160mm | DS-100H |
| Brake Levers | TEKTRO 2.5 Finger Ergo | Reach Adjustment |
| Handlebars | Alloy Riser Bar | Ø25.4 bar bore | 80mm rise | 15-degree wrist-saver sweep | 635mm width |
| Tape/Grips | Ergo Comfort | Dual Density |
| Stem | Quill | Alloy | Adjustable 0-25° rise | Ø25.4 bar bore | S/14": 85MM; M/17" - L/20": 105MM |
| Headset | 1-1/8" Integrated | Threaded |
| Seatpost | Alloy | Suspension | Easy-adjust head | 27.2 x 300mm |
| Saddle | HARO | Shock-absorbing |
| Pedals | Causeway flattopers | Shock-absorbing Kraton inserts |
| Accessories & Extras | Rack & Fender Mounts |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Bali Blue / Medium / 700c | 691840342339 | 34233 | 210000044971 |
